Terminal Crimp Validation Charts

December 18th, 2009

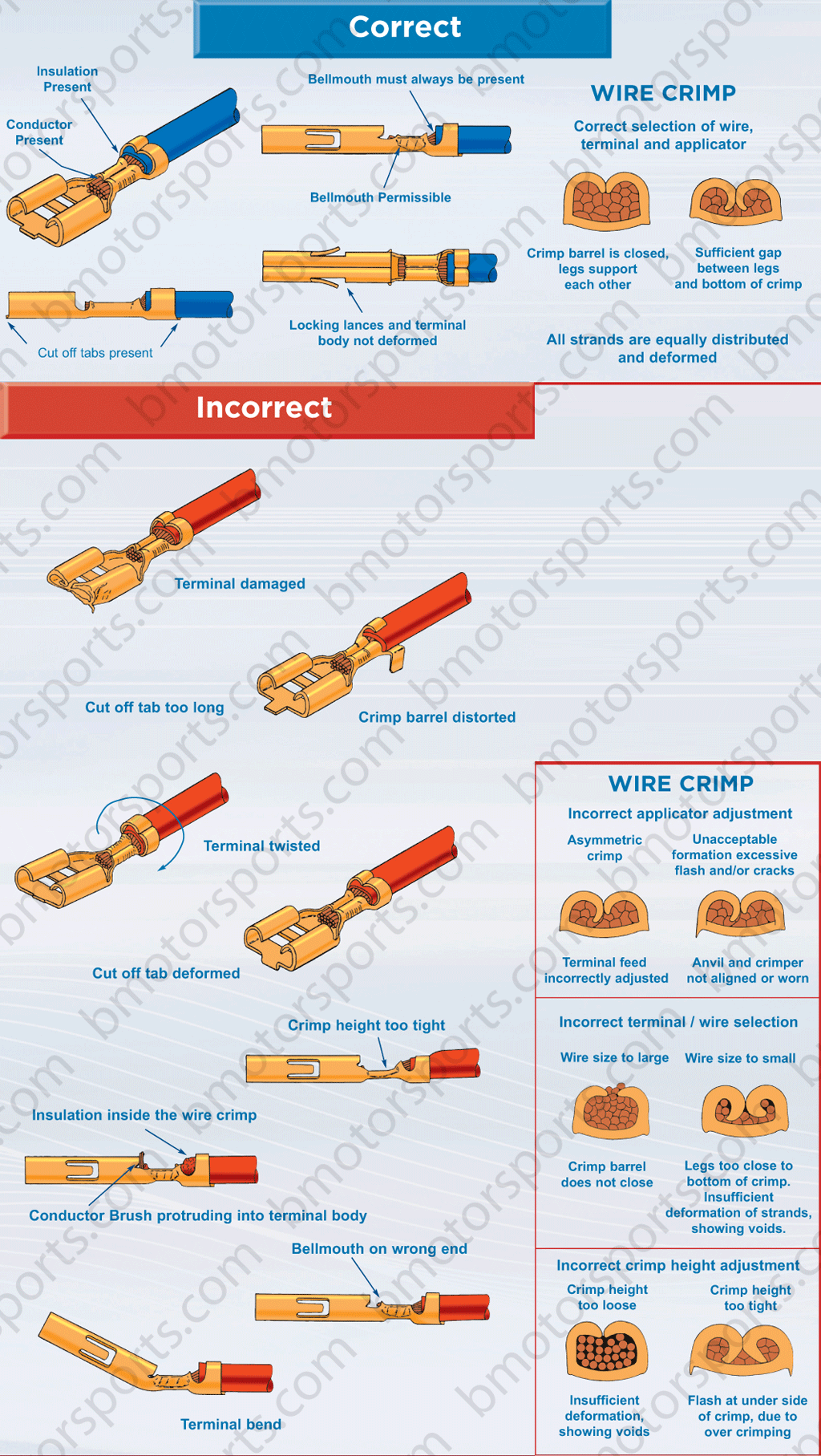

One of our most common customer questions centers around terminal crimp quality and validation. For this reason, we have decided to post a chart provided by Tyco Electronics in a few different formats.

For professional shops, we recommend downloading the highest quality and printing the guide on legal or larger paper for shop reference. For individuals, we have smaller versions available and you can simply reference the images or pdfs.

Large Crimp Validation Poster – PDF File Format – 2615 x 1396 – 3.5Mb
Large Crimp Validation Poster – PNG Image Format – 2615 x 1396 – 1Mb
Abbreviated Crimp Validation Poster – PDF File Format – 1064 x 1886 – 1.7Mb
Abbreviated Crimp Validation Poster – PNG Image Format – 1024 x 1815 – 0.5Mb
